Spectra

Spectra

An unbeatable combination of great design and latest USB technology.



For Standard Kinetec Knee CPM Patient Pad Kits please use the code US-ITEM00058

For Deluxe Kinetec Knee CPM Patient Pad Kits please use the code US-ITEM00059

Contact us for Price

    Description

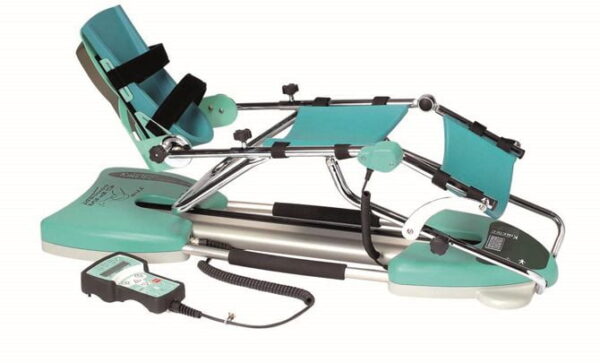

    The Kinetec Spectra™ combines stylish design and outstanding functionality with a simple hand control.

    An unbeatable combination of great design and latest USB technology.

    Remarkable designs

    Its arrow shape design and structure is remarkably lightweight and compact, facilitating set ups in hospital beds or at patients’ homes as well as making storage easier. The padded side handles make the unit comfortable to carry.

    Range of motion

    From -10° to 120° of flexion.
    The Kinetec Spectra™ range of motion allows treatment of most knee & hip pathologies. Anatomically correct alignment increases patient compliance and decreases joint stress.

    Patient feedback & unique features

    The digital remote control provides a precise yet clear feedback to the patient as well as helping the therapy with unique functions such as warm-up or by-pass.

    Kinetec data capture USB technology ready

    The Kinetec Spectra™ remote control is also equipped with the latest USB technology enabling the use of the Kinetec Data Capture™ software and patient USBs to track patient progress as well as pre-program the entire patient rehabilitation protocol.

    Technical specifications


    The anatomically correct system increases the comfort of the patient and decreases the points of pressure. – Patient lock-out prevents accidental program changes and potential injury.


    Advanced movement with precise adjustment.


    Warm Up – The patient reaches gradually the pre-set full ROM.


    Modulation – Allows manual setting of the ROM end-point based on patient tolerance. This mode is generally used at the beginning of the session.


    Rom By Pass – Used during the session, this mode allows a manual setting based on new patient tolerance, thus offering a real progressive work of the Range of motion.


    Force – This security feature allows the patient to reverse the movement following muscular contraction.


    Timer – Control of the session time.


    Programme – Allows set-up of 16 customised programmes.


    Pauses – Pauses at movement limits, for improved results.


    Start/Stop and reverse always accessible.


    Internally contained medical grade transformer eliminates handling extra components. – 2-year full warranty.


    Type BF class II electrical device.


    Long-life DC motor and screw-drive mechanism for years of reliable performance.


    ROM: Knee -10° to 120°, Hip 75° to 10°.


    Foot position – Plantar Flexion: 40°, Dorsal flexion: 30°, Abduction/adduction: 30°.


    Speed: 45° to 155° per minute.


    Weight: 26 lbs (12kg).


    Size of the device: Length 37″ (95cm), Width 13″ (33cm), Height 13″ (33cm).


    Patient sizing:

    Full Patient: 57 to 77″ (145 to 195cm)

    Full leg size: 28″ to 39″ (71 to 99cm)

    Tibia: 15″ to 21″ (38 to 53cm)

    Femur: 13″ to 18″ (33 to 46cm)

    User weight: 298 lbs (135kg)

    Our Youtube channel features the unboxing and set up of our CPM’s. Click on the links below to see them:

    Spectra Knee CPM comfort supports set up

    Spectra Knee CPM pads set up

    Knee CPM unboxing
