Description
Manosplint Ohio is a low-temperature thermoplastic with 100% memory that is ideal for a wide range of splints. Translucency when heated allows for clear visibility of the target areas. Ohio has a non-stick coating, providing a smooth, glossy surface that will allow temporary ‘pinch bonds’ but will not permanently bond unless the coating is removed.
Other features include: 100% memory, moderate resistance to stretch, moderate drape, high rigidity and resists finger prints.
Manosplint Ohio can be printed to provide fun, exciting splints – please select your pattern below or contact us if you want a custom design.
Memory:
100% Memory – when fully reheated can regain original size and shape.
Resistance to Stretch (RTS):
Moderate handling with smooth strokes during molding. Shapes easily.
Drape:
Moderate pressure needed for a conforming fit.
Rigidity:
Maximum – strong support.
Bonding & Finish:
Coated material that resists fingerprints with a shiny finish. Will not adhere to itself unless the coating is removed.
Perforations:
Available on solid, 1%, 11%, 12%, 15%, 19%, 36% and 42% perforation options, depending on the material and thickness.
Material Thickness:

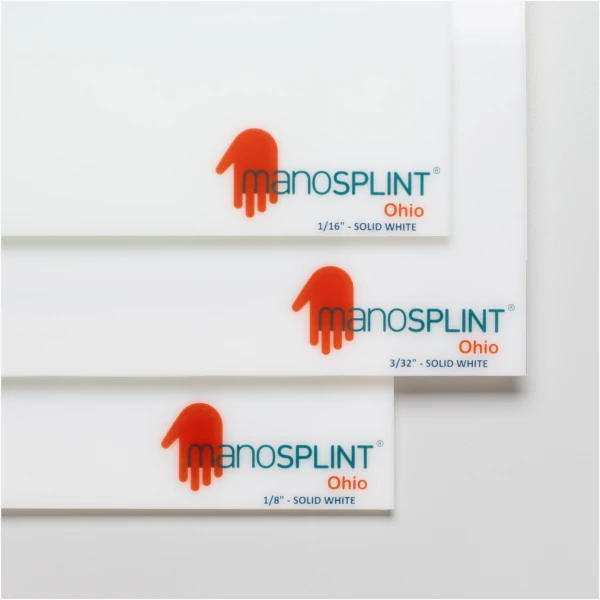

1/8″ (3.2mm), 3/32″ (2.4mm), 1/12″ (2.0mm) and 1/16 (1.6mm)
Colors:
Available in white, beige and black
Suggested Clinical Applications:
- Immobilization orthoses – wrist, thumb and hand; wide variety of diagnoses including pediatrics, tendon injuries, fractures, arthritis, and neurological diagnoses
- Mobilization orthoses – serial static approach or base for dynamic and static progressive designs
- Circumferential designs
For further detailed information on Manosplint’s splinting materials, click on the link below:
Manosplint Catalog
